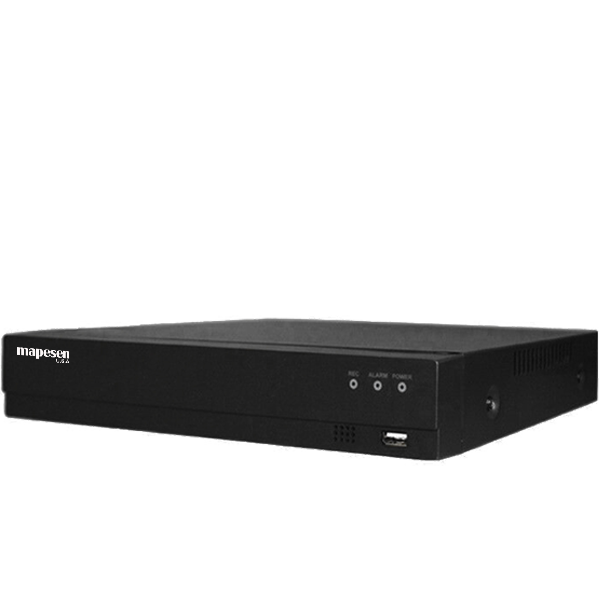

Pro 4K H.265+ Hexa-brid XVR Series
4CH/8CH Channels HD 4K
8TB Storage Capability ·AHD/CVI/TVI/CVBS/XVI/IP · Audio I/O · HDMI/VGA · 3 USB Port · ONVIF · Intelligent Analysis ·
.png)
- 1
- 2
- 3
- 4
4CH/8CH Channels HD 4K
|
Model |
XVR-TGL8104 |
|
System |
|
|
Operating System |
Hi3521D |
|
Preview |
1/4/8/9 |
|
Video |
|
|
Encoding Format |
H.265＋ |
|
Monitor Quality |
VGA(1080P at most);HDMI(4K at most) |
|
Preview Ability |
4*8M@15fps(AHD)/4*5M@20fps( 6 in 1) /4*4M( 6 in 1) |
|
Encode Ability |
4*8M@15fps(AHD)/4*5M@20fps( 6 in 1) /4*4M( 6 in 1) |
|
Decode Ability |
4*8M@8fps(AHD)/4*5M@14fps( 6 in 1) / 4*4M@18fps( 6 in 1) /4*3M@21fps( 6 in 1) /4*1080P(6 in 1) |
|
Multi-mode Input |
Analog: 4*8M; 4*5M; Digital to analog conversion: support( except 4＋4 hybrid mode) Hybrid: 4*5M( analog) ＋4*5M( network) ; 2*4K( analog) ＋2*4K( network) Network: 8*1080P＋8*960P; 4*5M; 3*5M |
|
Motion Detection |
Each screen can be set to 192 (16 * 12) detection areas; Multi-level sensitivity can be set (Limited local channel) |
|
Audio |
|
|
Audio compression |
G.711A |
|
Intercom |
Support |
|
Record & Playback |
|
|
Record Mode |
Manual>Alarm>Motion detection>Timing |
|
Local Playback |
4ch(analog input mode) |
|
Search Mode |
Search by time, calendar, event, channel |
|
Storage & backup |
|
|
Video Storage |
HDD, Network |
|
Backup Mode |
|
|
External Interface |
|
|
Video Input |
4ch BNC |
|
Video Output |
1ch VGA, 1ch HDMI |
|
Loop Out |
N/A |
|
Audio I/O |
4/1 |
|
Alarm I/O |
0( Can be extended to 4ch) /0( Can be extended to 1ch) |
|
Network Interface |
RJ45 10M/100M self-adaption |
|
PTZ Control |
1*RS485, Support kinds of PTZ protocols |
|
USB |
2* USB 2.0 ports |
|
HDD |
1*SATA ports (Max 8TB/per) |
|
Wireless |
3G, WIFI (extend via USB) |
|
General |
|
|
Power Supply |
12V/2A |
|
Power Consumption |
<15W (without HDD) |
|
Working Environment |
Temperature: 0℃—＋55℃, Humidity:10%—90%, Atm: 86kpa—106kpa |
|
Model |
XVR-TGL8108 |
|
System |
|
|
Operating System |
Hi3531D |
|
Preview |
1/4/8/9 |
|
Video |
|
|
Encoding Format |
H.265＋/H.265/H.264＋/H.264 |
|
Monitor Quality |
VGA(1080P at most);HDMI(4K at most) |
|
Preview Ability |
8*8M@15fps(AHD)/8*5M@20fps（6 in 1）/8*4M（6 in 1） |
|
Encode Ability |
8*8M@8fps（AHD）/8*5M@14fps（6 in 1）/ 8*4M@18fps（6 in 1）/8*3M@21fps（6 in 1）/8*1080P(6 in 1) |
|
Decode Ability |
4*8M@8fps（AHD）/8*5M@14fps（6 in 1）/ 8*4M@18fps（6 in 1）/8*3M@21fps（6 in 1）/8*1080P(6 in 1) |
|
Multi-mode Input |
Analog: 8*8M;8*5M; Digital to analog conversion:support（except 8＋8 hybrid mode） Hybrid:8*5M（analog）＋8*5M（network）; 4*5M（analog）＋4*5M（network） network:8*3M ;4*5M |
|
Motion Detection |
Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
|
Audio |
|
|
Audio Compression |
G.711A |
|
Intercom |
Support |
|
Record & Playback |
|
|
Record Mode |
Manual>Alarm>Motion detection>Timing |
|
Local Playback |
8ch(analog input mode) |
|
Search Mode |
Search by time, calendar, event, channel |
|
Storage & backup |
|
|
Video Storage |
HDD, Network |
|
Backup Mode |
Network, USB hard disk, USB burner, SATA burner |
|
External Interface |
|
|
Video Input |
8CH BNC |
|
Video Output |
1CH VGA, 1CH HDMI |
|
Loop Out |
N/A |
|
Audio I/O |
4(Can be extended to 8ch)/1 |
|
Alarm I/O |
0（Can be extended to 4ch）/0（Can be extended to 1ch） |
|
Network Interface |
RJ45 10M/100M self-adaption |
|
PTZ Control |
1*RS485, Support kinds of PTZ protocols |
|
USB |
2* USB 2.0 ports |
|
HDD |
1*SATA ports (Max 8TB/per) |
|
Wireless |
3G, WIFI (extend via USB) |
|
General |
|
|
Power Supply |
12V/2A |
|
Power Consumption |
<15W (without HDD) |
|
Working Environment |
Temperature:0℃—＋55℃, Humidity:10%—90%, Atm:86kpa—106kpa |
|
Model |
XVR-TGL8208 |
|
System |
|
|
Operating System |
Hi3531D |
|
Preview |
1/4/8/9 |
|
Video |
|
|
Encoding Format |
H.265＋/H.265/H.264＋/H.264 |
|
Monitor quality |
VGA(1080P at most);HDMI(4K at most) |
|
Preview ability |
8*8M@15fps(AHD)/8*5M@20fps（6 in 1）/8*4M（6 in 1） |
|
Encode ability |
8*8M@8fps（AHD）/8*5M@14fps（6 in 1）/ 8*4M@18fps（6 in 1）/8*3M@21fps（6 in 1）/8*1080P(6 in 1) |
|
Decode ability |
4*8M@8fps（AHD）/8*5M@14fps（6 in 1）/ 8*4M@18fps（6 in 1）/8*3M@21fps（6 in 1）/8*1080P(6 in 1) |
|
Multi-mode input |
Analog: 8*8M;8*5M; Digital to analog conversion:support（except 8＋8 hybrid mode） Hybrid: 8*5M（analog）＋8*5M（network）; 4*5M（analog）＋4*5M（network） network: 8*3M ;4*5M |
|
Motion Detection |
Each screen can be set to 192 (16 * 12) detection areas; Multi-level sensitivity can be set (Limited local channel) |
|
Audio |
|
|
Audio compression |
G.711A |
|
Intercom |
Support |
|
Record & Playback |
|
|
Record Mode |
Manual>Alarm>Motion detection>Timing |
|
Local Playback |
8ch(analog input mode) |
|
Search Mode |
Search by time, calendar, event, channel |
|
Storage & backup |
|
|
Video Storage |
HDD, Network |
|
Backup Mode |
Network, USB hard disk, USB burner, SATA burner |
|
External Interface |
|
|
Video Input |
8CH BNC |
|
Video Output |
1CH VGA, 1ch HDMI |
|
Loop Out |
N/A |
|
Audio I/O |
4(Can be extended to 8ch)/1 |
|
Alarm I/O |
0（Can be extended to 4ch）/0（Can be extended to 1ch） |
|
Network Interface |
RJ45 10M/100M self-adaption |
|
PTZ Control |
1*RS485, Support kinds of PTZ protocols |
|
USB |
2* USB 2.0 ports |
|
HDD |
2*SATA ports (Max 8TB/per) |
|
Wireless |
3G, WIFI (extend via USB) |
|
General |
|
|
Power supply |
12V/4A |
|
Power Consumption |
<15W (without HDD) |
|
Working Environment |
Temperature:0℃—＋55℃, Humidity:10%—90%, Atm:86kpa—106kpa |
